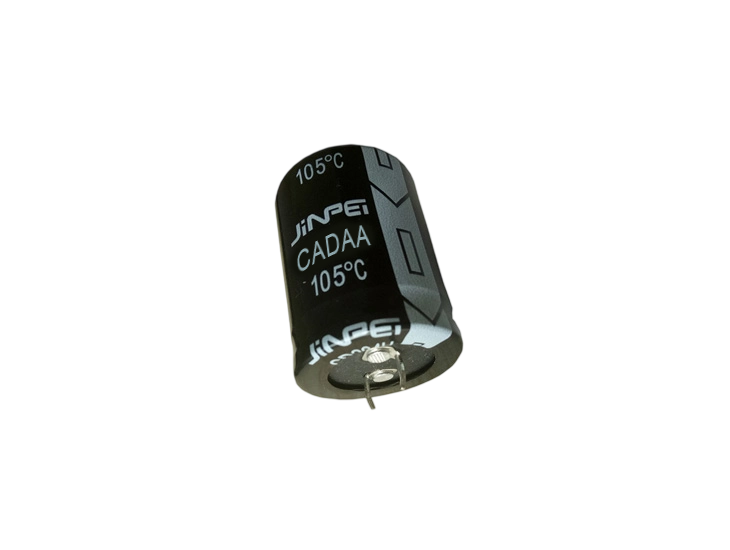

军事的快速电解电容器可靠性指数CADAA & 防御

There are reliability indicators, and there are five levels of failure rate（λ≤1×10-5）
It meets the environmental requirements of vibration, low pressure, humidity resistance and other environmental requirements of the national military standard GJB603-88
它适用于过滤, coupling and bypassing in electronic circuits in aerospace, 航空, 高山, high altitude and ocean

Datasheet-for-snap-in-electrolytic-capacitor-reliability-index-CADAA-for-military-defense.pdf (下载89)

Empty tab. Edit page to add content here.

物品

特征

工作温度范围

-55℃〜+ 105℃

Rated voltage range

10V〜500V

Nominal capacitance range

47μF~68000μF

Allowable deviation of nominal capacitance（25℃，100赫兹）

M（±20% ）

DC leakage current（25℃，5最小）

I≤0.02CRUR（μA）

CR：Nominal capacitance（μF）；UR：Rated voltage（V）

Dissipation factor tgδ（25℃，100赫兹）

（ur（v）

100

160〜450

500

tgδ（≤）

0.20

0.18

0.15

0.12

0.10

0.15

0.20

Products with capacities greater than 1500μF，Each increase1000μF，The dissipation

factor increases0.02。

温度特性

(100赫兹)

Impedance ratio

Z-55℃/Z+25℃≤15

Rate of change

in capacitance

（C+25℃－C-55℃）/C+25℃≤20%（≤40%（500V））

（C+25℃－C-40℃）/C+25℃≤10%（≤20%（500V））

durability

The rated voltage with ripple current is applied at 105°C for 2000h, and after

recovery for 24h, the rated voltage with ripple current is tested at room temperature (25°C±5°C), and its electrical performance is in accordance with the test ：

Rate of change in capacitance

≤±15% Initial measurements

The dissipation factor tgδ

≤150% Initial prescriptive value

DC leakage current

≤Initial prescriptive value

在高温下存放

After being left at 105 °C for 500h and recovered for 24 小时, the electrical performance was tested at room temperature (25 °C±5 °C). ：

Rate of change in capacitance

≤±15% Initial measurements

The loss angle tangent tgδ

≤200% Initial prescriptive value

DC leakage current

≤200% Initial prescriptive value
