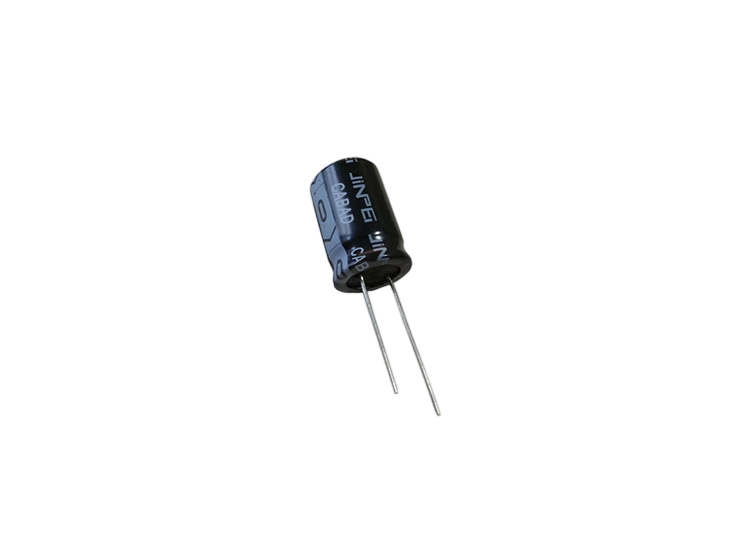

المكثف الكهربائي للبوليمر الشعاعي منخفض ESR كاباد للجيش & دفاع
- 125°C series, high heat resistance, leaded
- ESR منخفضة, high frequency and low
- The national military standard level meets the environmental requirements of vibration and low
- It is suitable for energy storage, filtering and bypass in electronic circuits in aerospace, طيران, cold, high altitude and ocean.
| غرض | characteristic | |||
| نطاق الحرارة الشغالة | -55℃ ~ + 125 ℃ | |||
| Rated operating voltage range | 10V ~ 100V | |||
| Nominal capacitance range | 8.2μF~22000μF | |||
| Allowable deviation of nominal
السعة |
M（±20%） （25℃，120Hz） | |||
| DC leakage current*1 | I≤0.01CRUR（μA） （25℃，2min）
سجل تجاري: Nominal capacitance (μF); أور: الفولطية (V) |
|||
| Loss tangent tgδ (الأعلى) | For details, please refer to the “List of Product Specifications and Technical
العوامل”（25℃，120Hz） |
|||
| ESR (أقصى)*2 | For details, please refer to the “List of Product Specifications and Technical
العوامل”（25℃，100KHz） |
|||
| Low temperature characteristics
(capacitance rate of change) |
(C25℃°-C55℃）/C25℃≤35% （25℃，120Hz） | |||
|
Durability (High Temperature Test) |
The rated voltage is applied at 125°C for 2000h, and after recovery for 24h, the test is
في درجة حرارة الغرفة (25°C±5°C), and its electrical performance conforms to: |
|||
| Rate of change in capacitance | ≤± 15% of initial measurements | |||
| DC leakage current | ≤ initial prescriptive value | |||
| The loss angle is tangent | ≤ initial measurements | |||
| ESR | ≤ 200% of the initial measurement | |||
|
Store at high temperatures |
After storage at 125 °C for 1000h, recovery for 24 ح, and test at room temperature
(25 °C±5 °C), its electrical performance conforms to: |
|||
| Rate of change in capacitance | ≤± 15% of initial measurements | |||
| DC leakage current | ≤ initial prescriptive value | |||
| The loss angle is tangent | ≤ initial measurements | |||
| ESR | ≤ 200% of the initial measurement | |||
