Metallized Polypropylene Film Capacitor | Rugged Environment| X2 310VAC | CDCC

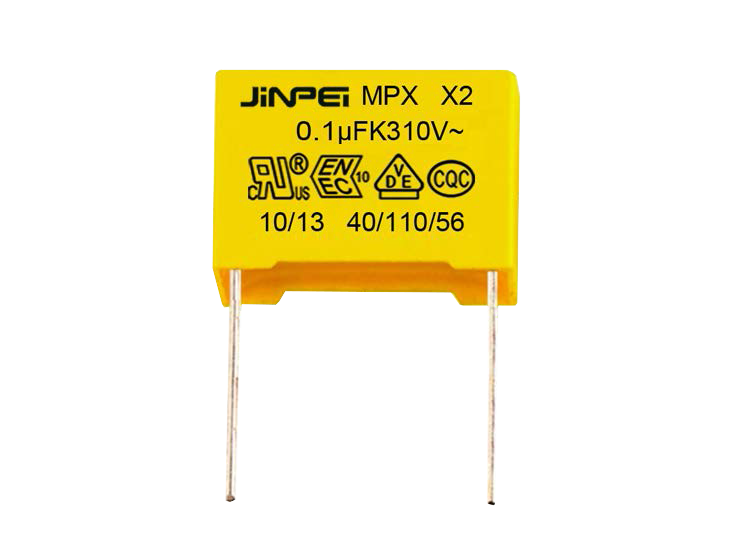

FEATURES

• 310VAC, X2 Class
• Very Long Life
• Tough environment construction
• Flame-retardant plastic case and epoxy
resin (compliant to UL 94V-0 rated)
• Excellent for power meter applications

ELECTRICAL  CHARACTERISTICS

Operating  Temperature Range	-40°C ~ +110°C
Capacitance Range	0.047µF ~ 2.2µF
Capacitance Tolerance	±5% (J), ±10% (K),  ±20% (M)
Rate Voltage (50-60Hz)	310VAC
Dissipation Factor	0.1% max  at 1KHz, 25°C
Insulation Resistance	≥15000MΩ at  DC100V (C≤0.33µF)
	≥5000MΩ x µF at  DC100V (C>0.33µF)
Climatic Category	40/110/56B



NOTE: See MKP type for standard X2 application

See MKP-P type for reduced size X2 application

PART NUMBER EXAMPLE

Leadspace is straight lead non-formed original leadspace.

STRAIGHT LEAD SPACING (P)

Lead space is straight non-formed original leadspace

mm	15	22.5	27.5
Code	150	225	275
dv/dt*	300	180	120

* dV/dt (v/µSec) at 630Vdc

RECOGNIZATION

Agency	File number	Monogram
UL/ CUL	E346827
ENEC	SE/11048-3
CQC	CQC11001060989

LEAD STYLE

Code	Style
S	Straight
K	Kink-In (Stand Off)
F	Form Out**
I	Form In**

** For Bulk packaging with formed leads, add an additional 3 digit lead spacing code at end of part number.

LEAD LENGTH FROM SEATING PLANE

mm	3.5	4	4.5	20
Code	035	040	045	200

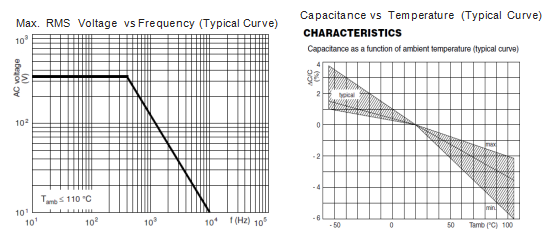

CHARACTERISTIC  CURVE

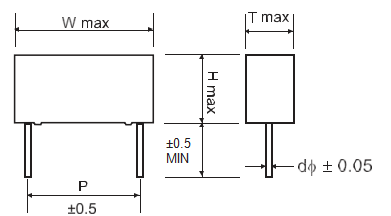

DIMENSION

Rating	Maximum Dimension (mm)
µF	Code	W	H	T	P	d
0.047	473	18	12	6	15	0.8
0.068	683	18	13	7	15	0.8
0.1	104	18	13.5	7.5	15	0.8
0.15	154	18	13.5	7.5	15	0.8
		26	14.5	6	22.5	0.8
0.22	224	18	15	9	15	0.8
		26	15	7.5	22.5	0.8
0.33	334	18	18	10	15	0.8
		26	17	8	22.5	0.8
0.47	474	18	19	12.5	15	0.8
		26	19	10	22.5	0.8
		31	18	9	27.5	0.8

NOTE: See MKP type for standard X2 application See

MKP-P type for reduced size X2 application

Rating	Maximum Dimension (mm)
µF	Code	W	H	T	P	d
0.56	564	26	20	10	22.5	0.8
		31	20	10	27.5	0.8
0.68	684	26	20	11.5	22.5	0.8
		31	20	10	27.5	0.8
0.82	824	26	20	11.5	22.5	0.8
		31	21	11	27.5	0.8
1.0	105	26.5	20	11	22.5	0.8
		31.5	23	13.5	27.5	0.8
1.5	155	26.5	20	11	22.5	0.8
		31.5	23	13.5	27.5	0.8
2.2	225	31	28	18	27.5	0.8

INTRODUCTION
