Metallized Polypropylene Film Capacitor | Reduced Size | X2 310VAC | CDCB

FEATURES

◆ 310V AC
◆ Non-inductive construction
◆ Self-healing property
◆ Flame-retardant plastic case and epoxy
resin (compliant to UL 94V-0)
◆ High moisture resistance

PART NUMBER EXAMPLE

STRAIGHT LEAD SPACING (P)

* Leadspace  is straight  lead  non-formed original leadspace.

mm	7.5	10	15	22.5	27.5	37.5
code	075	100	150	225	275	375

LEAD LENGTH FROM SEATING PLANE

mm	5	10	15	20
Code	050	100	150	200

LEAD STYLE

Code	STYLE
S	Straight
K	Kink-In (Stand off)
F	Form out**
I	Form in**



** For Bulk packaging with formed leads, add an additional 3 digit lead spacingcode at end of part number.

RECOGNIZATION

Agency	File number	Monogram
UL/CUL	E346827
ENEC	SE/11048-1
CQC	CQC11001060989

ELECTRICAL CHARACTERISTICS

Parameter	Specification
Operating Temperature Range	-40 °C ~ +110 °C
Capacitance Range	0.0047µF ~ 10 µF
Capacitance Tolerance	+5% (J), +10% (K), +20% (M)
Rate Voltage (50-60Hz)	310VAC
Dissipation Factor	0.1% max at 1KHz, 25 °C
Insulation Resistance	15000M     at DC 100V(C< 0.33µF)
	5000M     x µF at DC100V(C>0.33µF)
Climatic Category	40/110/21C

NOTE: See MKP-U type for high humidity application

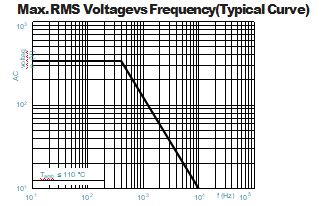

CHARACTERISTIC CURVE

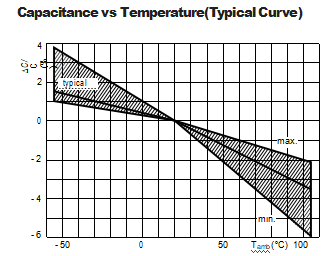

CHARACTERISTIC CURVE

DIMENSION

Rating	M ax im um  D im ens ion (m m )
(μ F )	Code	W	H	T	P	d
0.0047	47 2	13	8	4	10	0 .6
0.0056	56 2	13	9	4	10	0 .6
0.0068	68 2	13	9	4	10	0 .6
0.0082	82 2	13	9	4	10	0 .6
0.0100	10 3	13	9	4	10	0 .6
0.0100	10 3	18	8	4	15	0 .8
0.0150	15 3	10	8	4	7 .5	0 .6
0.0150	15 3	13	9	4	10	0 .6
0.0150	15 3	18	8	4	15	0 .8
0.0220	22 3	10	8	4	7 .5	0 .6
0.0220	22 3	13	9	4	10	0 .6
0.0220	22 3	18	9	4	15	0 .8
0.0330	33 3	10	9	5	7 .5	0 .6
0.0330	33 3	13	9	4	10	0 .6
0.0330	33 3	18	9	4	15	0 .8
0.0470	47 3	10	10	5	7 .5	0 .6
0.0470	47 3	13	9	4	10	0 .6
0.0470	47 3	18	9	4	15	0 .8
0.0560	56 3	10	11	5	7 .5	0 .6
0.0560	56 3	13	9.5	4.5	10	0 .6
0.0560	56 3	18	9	4	15	0 .8
0.0680	68 3	10	12	6	7 .5	0 .6
0.0680	68 3	13	10	5	10	0 .6
0.0680	68 3	18	10	4	15	0 .8
0.0820	82 3	10	12	6	7 .5	0 .6
0.0820	82 3	13	11	5	10	0 .6
0.0820	82 3	18	10	5	15	0 .8
0.1000	10 4	10	13	7	7 .5	0 .6
0.1000	10 4	13	11	5	10	0 .6
0.1000	10 4	18	10	5	15	0 .8
0.1200	12 4	13	12	6	10	0 .6
0.1200	12 4	18	10	5	15	0 .8
0.1500	15 4	13	12	7	10	0 .6
0.1500	15 4	15	11 .5	6	12 .5	0 .6
0.1500	15 4	18	10 .5	5	15	0 .8
0.1500	15 4	26	11	5	22 .5	0 .8
0.2200	22 4	13	14	8	10	0 .6
0.2200	22 4	15	12 .5	7	12 .5	0 .6
0.2200	22 4	18	11 .5	6	15	0 .8
0.2200	22 4	26	11	5	22 .5	0 .8
0.3300	33 4	15	14	8.5	12 .5	0 .6
0.330	33 4	18	13	7	15	0 .8

Rating	Maximum Dimension (mm)
(μF)	Code	W	H	T	P	d
0.330	334	26	14.50	6	22.5	0.8
0.390	394	15	15	9	12.5	0.6
0.390	394	18	13.5	7.5	15	0.8
0.390	394	26	12	6	22.5	0.8
0.470	474	15	16	10	12.5	0.6
0.470	474	18	14	8	15	0.8
0.470	474	26	14	6	22.5	0.8
0.470	474	31	13.5	6	27.5	0.8
0.560	564	15	17	11	12.5	0.6
0.560	564	18	15	9	15	0.8
0.560	564	26	14	7	22.5	0.8
0.560	564	31	14	6.5	27.5	0.8
0.680	684	18	16	10	15	0.8
0.680	684	26	15	7.5	22.5	0.8
0.680	684	31	15.5	6.5	27.5	0.8
0.820	824	18	17.5	10	15	0.8
0.820	824	26	16	8	22.5	0.8
0.820	824	31	16	7.5	27.5	0.8
1.000	105	18	18.5	11	15	0.8
1.000	105	26	17	9	22.5	0.8
1.000	105	31	17	8	27.5	0.8
1.200	125	26	19.5	9	22.5	0.8
1.200	125	31	17.5	9	27.5	0.8
1.500	155	26	21	10	22.5	0.8
1.500	155	31	18.5	10	27.5	0.8
1.800	185	26	23	12.5	22.5	0.8
1.800	185	31	20.5	12	27.5	0.8
2.200	225	26	22	15	22.5	0.8
2.200	225	31	22	13	27.5	0.8
3.300	335	31	29	15.5	27.5	0.8
3.300	335	31	26	17.5	27.5	0.8
3.300	335	41.5	26	14.5	37.5	1.0
3.900	395	31	28	19	27.5	0.8
3.900	395	41.5	27.5	16	37.5	1.0
4.700	475	31	30.5	20	27.5	0.8
4.700	475	41.5	30	17	37.5	1.0
5.600	565	31	34.5	18	27.5	0.8
5.600	565	41.5	31.5	18.5	37.5	1.0
6.800	685	41.5	35.5	22.5	37.5	1.0
8.200	825	41.5	38	25	37.5	1.0
10.000	106	41.5	41	27.5	37.5	1.0

NOTE: See MKP-U type for high humidity application

INTRODUCTION
CDCB Series are constructed with special Metalized/Polypropylene film dielectric, copperply lead, in plastic case and epoxy resin sealed. They are suitable for Line-By-Pass, antenna coupling, Across- The-Line and spark killer circuits and available for EMI filter and switching power supply application.
