Metallized Polypropylene Film Capacitor | Interference Suppressor| X2 300VAC | CDCD
CDCD Series are constructed with special Metalized/Polypropylene film dielectric, copperply lead, in plastic case and epoxy resin sealed. They are suitable for Line-By-Pass, antenna coupling, Across- The-Line, spark killer circuits EMI filter and switching power supply applications.
FEATURES
◆ Non-inductive construction
◆ Self-healing property (Metalized)
◆ Flame-retardant plastic case and epoxy resin
(compliant to UL 94V-0)
◆ High moisture resistance
◆ Agency recognized
DIMENSIONS (mm)
| Cap ( F) | Code | W | H | T | P | d |
| 0.0010 | 102 | 13 | 9 | 4 | 10 | 0.6 |
| 0.0015 | 152 | 13 | 9 | 4 | 10 | 0.6 |
| 0.0022 | 222 | 13 | 10 | 5 | 10 | 0.6 |
| 0.0022 | 222 | 18 | 11 | 5 | 15 | 0.8 |
| 0.0033 | 332 | 13 | 10 | 5 | 10 | 0.6 |
| 0.0033 | 332 | 18 | 11 | 5 | 15 | 0.8 |
| 0.0047 | 472 | 13 | 11 | 5 | 10 | 0.6 |
| 0.0047 | 472 | 18 | 11 | 5 | 15 | 0.8 |
| 0.0056 | 562 | 18 | 11 | 5 | 15 | 0.8 |
| 0.0068 | 682 | 13 | 12 | 6 | 10 | 0.6 |
| 0.0068 | 682 | 18 | 11 | 5 | 15 | 0.8 |
| 0.0082 | 822 | 13 | 13 | 7 | 10 | 0.6 |
| 0.0082 | 822 | 18 | 11 | 5 | 15 | 0.8 |
| 0.01 | 103 | 13 | 14 | 8 | 10 | 0.6 |
| 0.01 | 103 | 18 | 11 | 5 | 15 | 0.8 |
| 0.015 | 153 | 18 | 12 | 6 | 15 | 0.8 |
| 0.022 | 223 | 18 | 13 | 7 | 15 | 0.8 |
| 0.033 | 333 | 18 | 15 | 9 | 15 | 0.8 |
| 0.047 | 473 | 18 | 17 | 10 | 15 | 0.8 |
| 0.047 | 473 | 26 | 16 | 6 | 22.5 | 0.8 |
| 0.068 | 683 | 26 | 16.5 | 7.5 | 22.5 | 0.8 |
| 0.1 | 104 | 26 | 18 | 9 | 22.5 | 0.8 |
| 0.15 | 154 | 26 | 20 | 11 | 22.5 | 0.8 |
| 0.22 | 224 | 26 | 24 | 14 | 22.5 | 0.8 |
RECOGNITION
| Agency | File number | Monogram |
|
UL/CUL |
E346827 |
|
|
ENEC |
No.SE/11048-2A |
|
|
CQC |
CQC11001060988 |
SPECIFICATIONS SUMMARY
| Type | Performance |
| Operating Temperature Range | -40°C~+110°C |
| Climatic Categary | 40/110/56/B |
| Capacitance Range (25°C) | 0.001 F ~ 0.22 F |
| Capacitance Tolerance | ±5%(J),±10%(K),±20%(M) |
| Rated Voltage | 300VAC |
| DissipationFactorat20°C and1KHz |
0.10% max |
| Insulation resistance | 100,000 MΩ ormore(25°C) |
|
dv/dt (v/ sec at 438 Vdc |
800,Ls=10mm
600,Ls=15mm 500, Ls=22.5mm |
STRAIGHT LEAD SPACING (P)
* Leadspace is straight lead non-formed original leadspace.
| mm | 10 | 15 | 22.5 |
| Code | 100 | 150 | 225 |

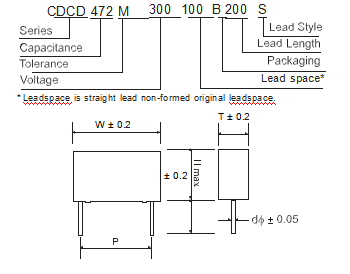

PART NUMBER EXAMPLE
* Leadspace is straight lead non-formed original leadspace.
LEAD LENGTH FROM SEATING PLANE
| mm | 10 | 10 | 15 |
| Code | 100 | 100 | 150 |
LEAD STYLE
| CODE | STYLE |
| S | Straight |
| K | Kink-In (Stand off) |
| F | Form out** |
| I | Form in** |
** For Bulk packaging with formed leads, add an additional 3 digit lead spacing code at end of part number
| TYPE: Y2/X1 |
METALLIZED POLYPROPYLENE CAPACITOR |
||
| PRODUCT SPECIFICATION | |||
| 1. Scope | Metallized polypropylene dielectric fixed capacitor is approved by UL&CUL, ENEC,
and CQC.Related documents: IEC60384-14, EN132400, UL1414 CSA C22.2 No.1, GB/T14472 (1998) Typical applications:interference suppression and <<across-the-line>> applications |
||
| 2. Product
Range |
Operating temperature range. | -40 to + 100°C (IEC60384-14)
+ 110°C max. ( UL&CUL ) (including temperature rise on unit surface) |
|
| Rated voltage | 300VAC max. (IEC60384-14)
300VAC max.(UL&CUL ) 1000VDC max. |
||
| Capacitance | Measured @ 1.0 ± 0.2KHz @25°C, 1 Vrms | ||
| 3.Apperance | 1. Marking shall be legible.
2. Plated lead-wire, no rust. 3. Coating shall be without crack, pinhole. |
||

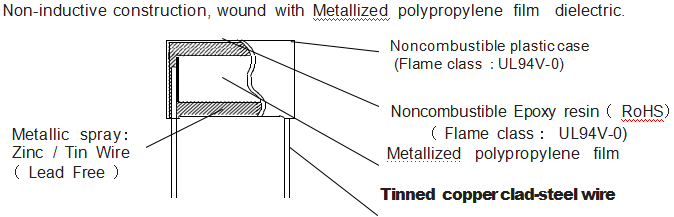

| 4.Construction | Non-inductive construction, wound with Metallized polypropylene film dielectric.
Noncombustible plastic case (Flame class : UL94V-0)
Noncombustible Epoxy resin ( RoHS) Metallic spray: ( Flame class : UL94V-0) Zinc / Tin Wire Metallized polypropylene film ( Lead Free ) Tinned copper clad-steel wire |
||
| 5. Conditional Stardard Test | The test temperature of from 15°C to 35°C, RH45 to 75%. | ||
| CHARACTERISTICS | |||
| NO. Item | Performance | ||
| 1. Tensile
Termination Strength |
• Straight lead pull gradually for 10 ± 1 second
• No broken or 100se terminations shall be found |
IEC 60384-14-4.3
(IEC 60384-1-4.13) |
|
| 2. Termination Bending Strength | • Lead wire to be bent 90°C inopposing directions, o n e time
• No broken or loose terminations shall be found |
IEC 6038-14-4.4.3
(IEC 6038-1-4.13) |
|
| 3. Vibration Test | • 10Hz to 55Hz, amplitude 1.5mm, 1 minute test cycle
• Test duration 2 hours, 3 mutually perpendicular directions • Electrical, Visual inspection during last 30 min in each direction • No opens or shorts, no mecharical damage |
IEC 60384-14-4.7
(IEC 60384-1-4.17) IEC 6008-2-6 Test Fc |
|
| 4. Solderability |  |
IEC 60384-14-4.5
(IEC 60384-1-4.15) IEC 60068-2-20 Test Ta |
|
| 5. Soldering Heat Resistance | • Solder dip up to 1.5 +0.5mm from terminal root using heat shielding solder temp 350°C ± 10°C for 3.5 ± 0.5 sec,
or 260 ± 5°C for 10 ± 1sec, Cool down to room temp 1 ± 5 hours • ΔC/C ≤ ± 3% of st arting value |
IEC 60384-14-4.4
(IEC 60384-1-4.14) IEC 60068-2-20 Test Tb |
|
| CHARACTERISTICS | |||
| NO. | Item | Performance | |
| 6. | Cold
Resistance |
• Test box – 40 ± 3% for2 hours. RoomTemp1.5 ± 0.5 hours
• ΔC/C ≤ ± 5% ofstarting value |
IEC60384-14-11.4 IEC 60068-2-1
TestAa |
| 7. | Dr y He at
Resistance |
• Test box +110 ± 2°C for2 hours, RoomTemp1.5 ± 0.5 hours
• IR ≥ 50% of startingvaule • ΔC/C ≤ ± 5% ofstarting value |
IEC60384-14-4.11.2 (IEC 60384-1-4.21.2
IEC 60068-2-2 TestBa |
| 8. | Humidity Resistance | • 90-95° RHat +40 ± 2°C for56 days
• RoomTemp/RH for1.5 ± 0.5 hours • Nofailure with 1500Vacapplied for 1 min • IR ≥ 50% ofspecified value • ΔC/C ≤ ± 5% of specified value • DF ≤ 0.15% @ 1KHz |
IEC60384-14-4.12 (IEC 60384-1-4.22
IEC 60068-2-3 TestCa |
|
9. |
Impuls e Voltag e |
• 24 Impulses of 5KVDC
• No perminent breakdoun or flashover • After impulse test capacitor is to be exposed to high temp loading |
IEC 60384-14-4.13 |
| 10. | High Temp
Loadin g |
• 1000 hour @ 110°C @ 170 % ratevoltage, each hourcycle voltageto 1000Vrms
for0.1sec • No failures when 1500 Vac for 1 min-Terminal to Terminal • No failures when 1500 Vac for 1 min-Terminal to Enclosure • IR ≥ 50% spec, between terminals • DF ≤ 0.15% @ 1KHz |
IEC60384-14-4.14 |
| UL/CSA | |||
| 1. | Across-the
-line discharge test |
•Apply 240VAC 60Hz to capacitor, and pulse 5K VDC from Dump capacitor 4 times with 5 sec interval between discharges, maintain 240 VAC for 30 sec after Last pulse
• No glowing, flame, or expulsion of material from the capacitor |
UL1414.13 CSA C22.2 NO.1 10.5.1 |
| 2. | Line-by-pass Discharge Test | • 10KVdc pulsefrom 0.001μF Capacitor, 5 second interval between pulses
• No abnormal conditionor terminal tocase when1,000VAC applied for1 minute |
UL1414.16
CSA C22.2 NO.1 6.12.2 |
| 3. | Damp Heat Insulation | • 93± 2 % for48 hours. 20 to30°C
• IR=2MΩ or more @ 250VDC |
UL1283.29 |
| 4. | Flame test | • Apply flame for 15 sec, remove, capacitor no flame after 15 seconds repeat 3 times, no flame after 60 seconds
• See UL test procedure for more detail |
UL1414.9 |
INTRODUCTION
CDCD Series are constructed with special Metalized/Polypropylene film dielectric, copperply lead, in plastic case and epoxy resin sealed. They are suitable for Line-By-Pass, antenna coupling, Across-
The-Line, spark killer circuits EMI filter and switching power supply applications.
